RAMFAN
40V EX50Li G3
1.3hp 1kW BrushlessPPV
Superior upgrade designed exclusively for firefighting

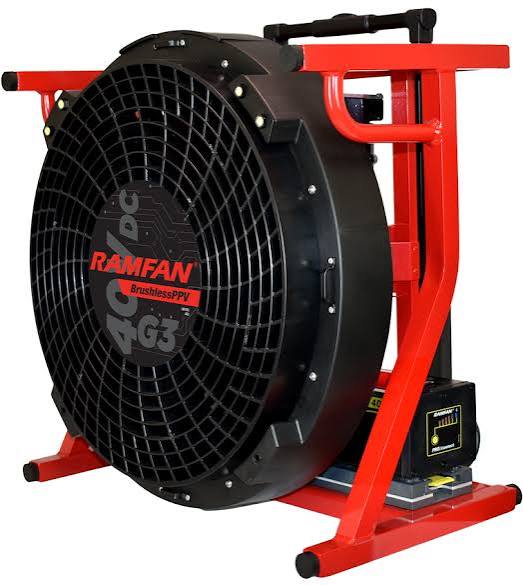

The RAMFAN 40V EX50Li G3 (EL5900) provides the highest power available for firefighters with upgrades that includes an increased power of 67% higher than the Gen 2 EX50Li, a new OLED digital display on the controller, optional MagCode power port and optional AT frame configuration.
The RAMFAN 40V EX50Li G3 offers flexible charging options designed for fire apparatus readiness. With their on-tool charging, it supports AC charging from standard wall power, allowing the fan to run continuously without draining the batteries while initiating charging of the installed packs when the fan is not running.
The G3 also supports DC charging via our new MagCode Rapid Charger, featuring a magnetically guided DC plug that enables fast, glove-friendly connections with built-in breakaway safety inside the apparatus. For added flexibility, the external Dual-Pack Rapid Charger allows simultaneous charging of two battery packs outside the fan—ensuring fully charged spares are always ready when you need them.
Key Features
| User Interface | OLED digital display with runtime, speed settings, modes, and messages |
|---|---|
| Wireless Connectivity | Pro//connect allows remote operations and diagnostics. |
| Safety Features | ROPS: Faster response for enhanced safety during critical movements. LED Flood Lights: Low runtime warning with integrated shroud flash signaling. |
| DC Charging | MagCode Rapid Charger provides a safe, self-aligning DC connection with its magnetic design. |

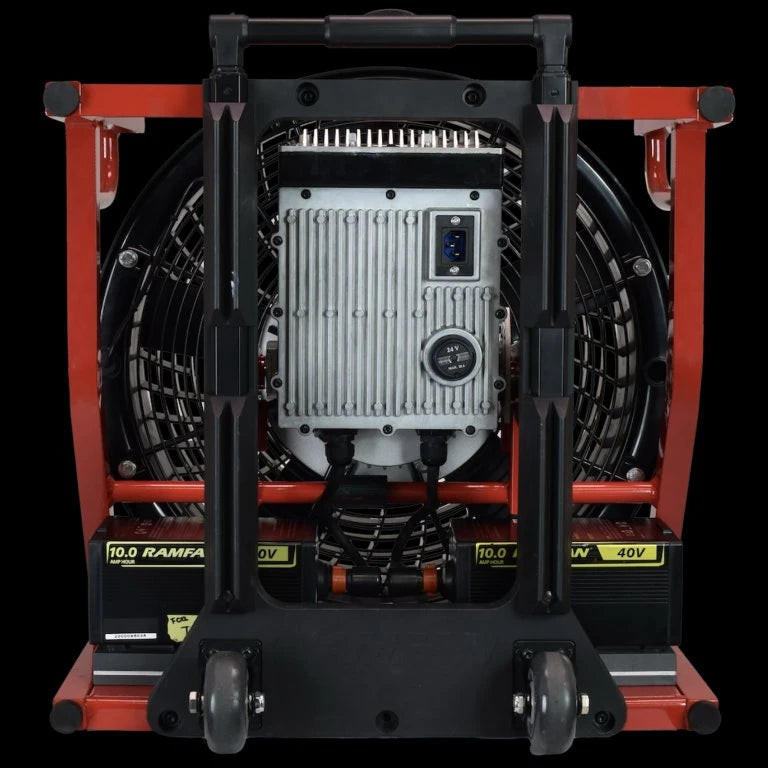

| AC Charging | When plugged in, the internal power supply will provide unlimited AC time. While connected, the system can charge the 40V battery packs mounted on the fan. |
Product Features
- AC inputs (90-264 Vac)
- Magnetic Power Port
- 40V Battery Packs (2)
- 67% higher power than the Gen 2 EX50Li with a better runtime (1kW continous / 1.2kW MAX mode™)
- Integrated OLED digital display with runtime, speed settings, modes, and messages.
- Flexible charging options with the On-Tool AC, MagCode Rapid, and Dual-Pack Rapid Chargers.
- Available in standard frame with optional AT frame configuration.
Unmatched 1kW motor performance for superior ventilation.
The RAMFAN EX50Li G3 Brushless PPV (EL5900) provides a highly efficient and adaptable solution for firefighters. Now available with rugged all-terrain wheels!
40V EX50Li G3 Diagram
Width: 21″ · Height: 22″ · Depth: 16″
Vehicle Mount: 22″ × 12″
10″ AC outlet placement for ontool charging
Technical Specifications
EX50Li G3 (40VDC) 18″ / 46 cm
| Model Number | PRO//connect | Makita |
|---|---|---|
| Input Voltage | 115V / 230V | |
| Urban Edition | EL5900 / EL5900-E | |
| All-Terrain Edition | EL5925 / EL5925-E | |
| Motor | 1kW Brushless PPV | |
| Runtime @ Max. Speed | 45 min - 40v/10Ah (Part# M5-40V) AC: Unlimited |
|
| Input Voltage Range | Universal Input: 90-264 VAC, at 50/60 Hz | |
| Consumption AC (Running @ 100%) | 700 W | |
| Consumption (During On-Tool Charging) | 168W | N/A |
| Charger Output | 4A / 2A per battery (simultaneous) | N/A |
| MagCode Rapid Charger | Optional | N/A |
| Dual-Pack Rapid Charger | Optional | N/A |
Battery System Performance (M5-40V battery)
| Nominal Energy | 720 Wh |
|---|---|
| Maximum Discharge Current | 20 A |
| Cycle Life DoD 80% | >500 Cycles (at 1C charge/discharge 100% DoD) |
| IP Rating | IP66 |
| Wireless Diagnostics | via NFC/BLE to PRO//connect mobile app |
| Recycling Mode | Safety Recyle by draining residual energy |
| Maintenance Mode | Initial Cell Balancing in low use fans |
| Dimension | 22 x 21 x 16 in/56 x 53 x 41cm 22 x 21 x12 in/56 x 53 x 30cm (AT frame) (wheel kit removed) |
|---|---|
| Weight | 52 lbs |
| Noise | <90 dBA |
| Operating Temp Range | -4°F to 105°F / -20°C to 40°C |
| Charge Temp Range | -32°F to 105°F / -0°C to 40°C |
| Tilt | -10° to +34° |
| Conforms To | CE · Bluetooth · NFC |
| Airflow | AMCA 240-22 pending |
